Complete Biomass Pellet Plant Solutions

From biomass processing machinery to pellet machines, genuine spare parts, installation and technical support — TRIO helps you build and operate your pellet production line.

5.0★★★★★
Rated by our clients
TRIO vertical ring die pellet machine LIVE · TRIO plants
Biomass pellet plantsBuilt & installed across India Watch a plant run
Why TRIO

Why choose TRIO Renewable Eng.

Built by engineers who run pellet plants themselves. We deliver real output on the ground, not just promises on paper.

Turnkey Pellet Plants

From raw-material study and plant layout to commissioning: one team, one responsibility.

In-House Manufacturing

Machines and spare parts are built at our own Jaipur facility, so quality stays in our hands.

Installation & Training

Our engineers install, commission and train your operators until the plant runs smoothly.

Service & Genuine Spares

Fast after-sales support and genuine ring dies and rollers keep downtime to a minimum.

0+Plants installed
0+States served
0Jaipur: office & warehouse
0Machines per plant line
PRODUCTS

Machines built for
Profitable Pellet Plants

From shredding to pelletizing, every TRIO machine is engineered in-house to run as one line, giving you consistent pellets, less downtime and a faster payback.

6Machines in one line
8+Raw materials handled
6–16mmPellet diameters
100%Built in-house
01
Category 01

Main Process Machines

Shred, grind and pelletize: the three machines at the heart of every TRIO pellet plant.

3 machines
Product 01 · Flagship

Vertical Ring DiePELLET MACHINE

Built for performance. Made to last.

An advanced pelletizing system that compresses processed biomass into high-density fuel pellets using a vertical ring die structure. It runs continuously and efficiently, turning agro-waste into clean, renewable fuel for boilers, industries and power plants.

Capacity*1.0 – 4.0 TPH
Motor power90 – 250 kW
Pellet size6 – 16 mm
Models560 · 700 · 850

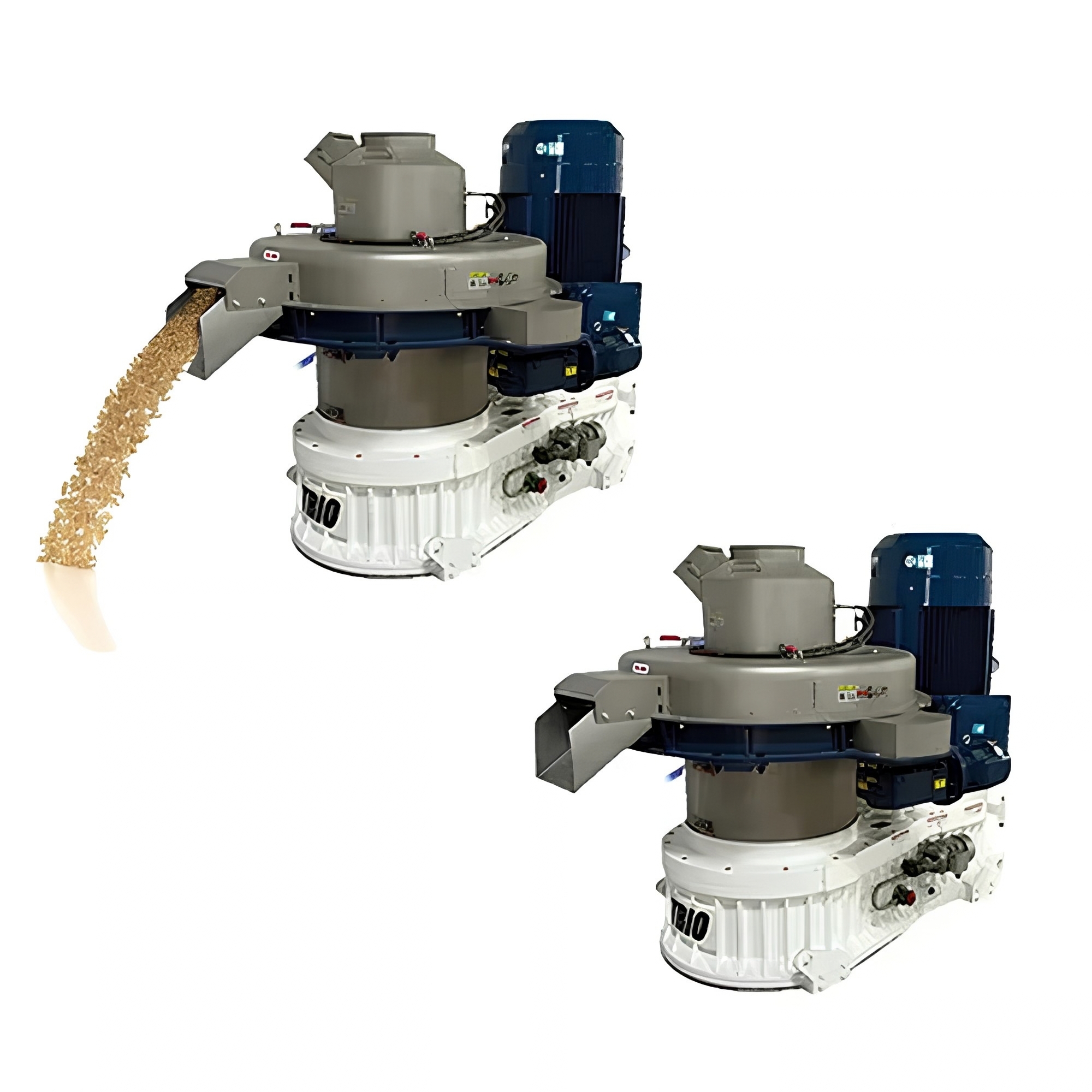

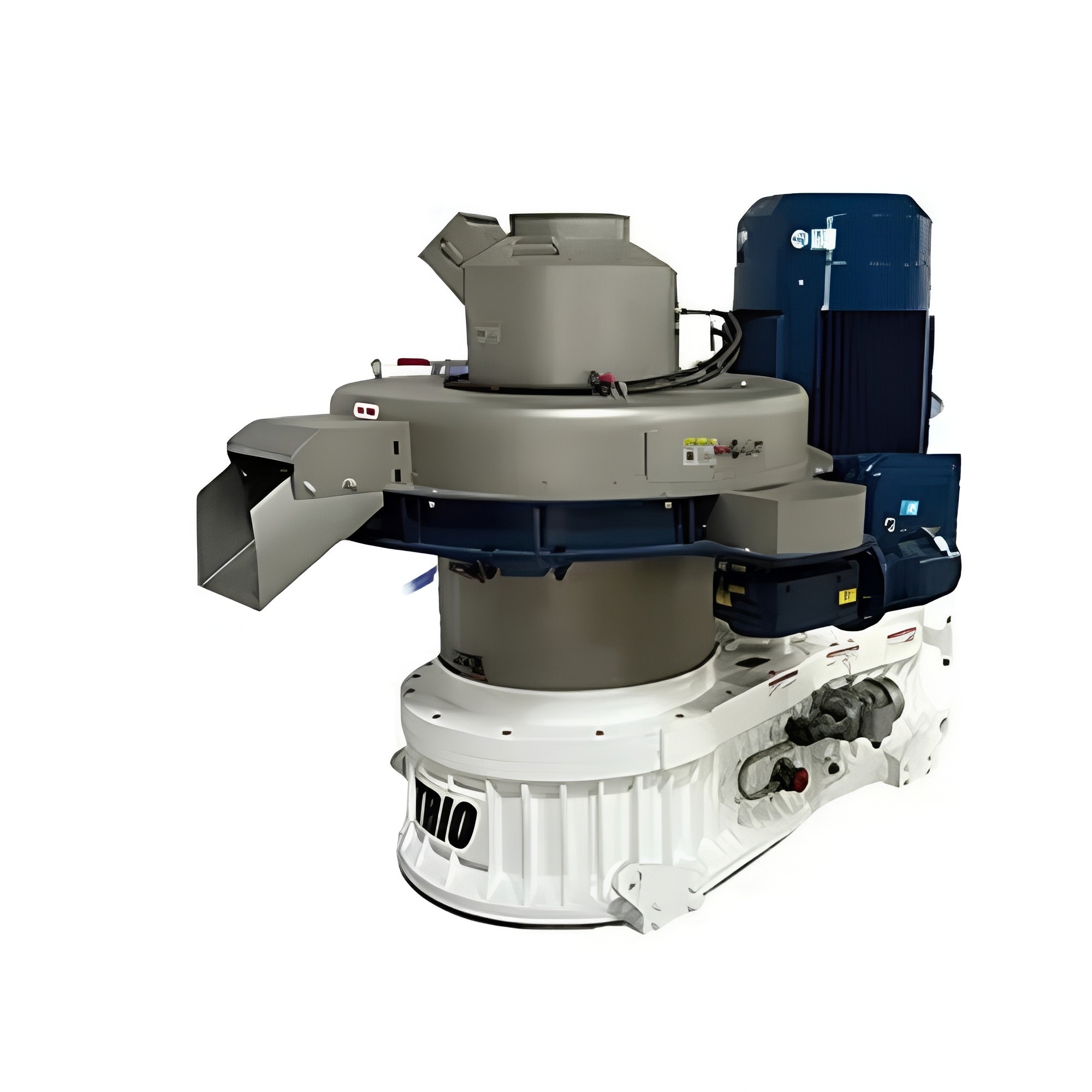

TRIO vertical ring die pellet machine
◎SS X46Cr13 Die ↓Gravity Feed ⌀6–16 mm Pellets ❦Agro + Wood ⚙Welded Rollers ⚡Up to 4 TPH
TECHNICAL PARAMETERS

Choose the Model for Your Output

5 models · TRIO560 to TRIO850
ModelPowerCapacity (TPH)*Pellet size
TRIO56090 kW
1.0 – 1.5*
6 – 12 mmEnquire
TRIO560132 kW
1.5 – 2.0*
6 – 12 mmEnquire
TRIO560160 kW
2.0 – 2.5*
6 – 12 mmEnquire
TRIO700160 kW
2.5 – 3.0*
6 – 12 mmEnquire
TRIO850250 kW
3.0 – 4.0*
6 – 16 mmEnquire

* Machine output depends on material type, moisture content and material density. Figures are indicative only.

Swipe to see more
FEATURE_1
Vertical Gravity Feed

Material falls straight into the pressing chamber, so the die is loaded evenly and choke-ups are rare.

Gravity feedEven die loadFewer chokes
Feeding01
FEATURE_2
Stainless Ring Die

X46Cr13 stainless-steel ring die built for abrasive agro residue, with holes sized to the pellet you want to sell.

X46Cr13 SS6–16 mm diesWear resistant
Pressing02
FEATURE_3
Heavy-Duty Rollers

Welded roller shells and complete roller assemblies press the material through the die. Worn shells swap out fast.

Roller shellsFull assembliesQuick swap
Rollers03
FEATURE_4
Many Raw Materials

Makes pellets from agro residue and wood waste once it is ground and brought to the right moisture.

Paddy strawMustard huskSawdustGroundnut shell
Raw material04
Product 02 · Size reduction

Twin-ShaftSHREDDER MILL

Low speed. High torque. Heavy duty.

A low-speed, high-torque twin-shaft shredder that tears paddy straw bales, stalks and bulky agro residue into small, even pieces before the hammer mill. Wear-resistant cutters, a hexagonal main shaft and automatic overload reverse keep it running through tough, mixed material.

Capacity*5 – 20 TPH
DriveTwin motors
Rotor speed10 – 12 RPM
Blades35 – 40 mm

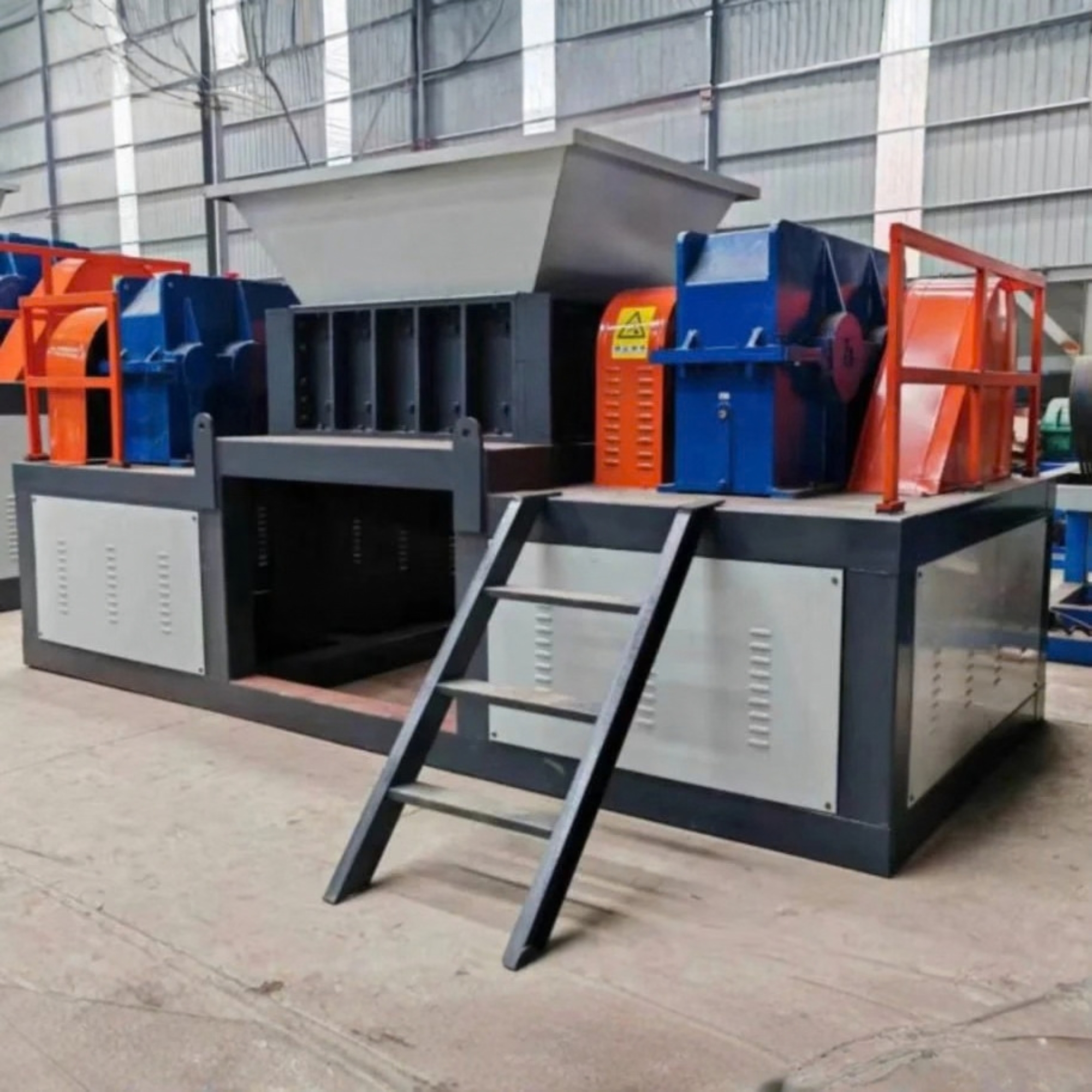

TRIO twin-shaft shredder mill
⚔Hardox 500 Cutters ⇄Twin Shaft ⚡Up to 20 TPH ↺Auto Reverse ⚙EN-24 Shaft
TECHNICAL PARAMETERS

Two Models, One Job: shred It Right

TRIO S1200 · Heavy-Duty
ParameterTRIO S1200Heavy-Duty Model
Output capacity*5 TPH15 – 20 TPH
Drive power55 + 55 kW215 + 215 HP
Cutting chamber1200 × 800 mm1100 × 1400 mm
Blades30 pcs · 40 mm thick35 mm thick · Hardox 500
Main shaft180 mm hexagonalEN-24 alloy steel
Safety & controlStar-delta start · Auto reverseHelical gearbox · IE2 motors
Enquire S1200 Enquire Heavy-Duty

* Output depends on material type, moisture, bale density and other external factors. Figures are indicative only.

Swipe to see more
FEATURE_1
Twin-Shaft Cutting

Two counter-rotating shafts turn slowly with huge torque, pulling bales in and tearing them apart without jamming.

Twin shaft10–12 RPMHigh torque
Cutting01
FEATURE_2
Hardox 500 Blades

Thick cutters in high carbon alloy steel or Hardox 500 stand up to silica-rich straw and abrasive residue.

Hardox 50035–40 mmWear resistant
Blades02
FEATURE_3
Heavy-Duty Drive

Twin motors with helical gearboxes drive an EN-24 or 180 mm hexagonal shaft, built for non-stop operation.

Twin motorsHelical gearboxEN-24 shaft
Drive03
FEATURE_4
Smart Protection

Star-delta soft start reduces starting load, and the shafts reverse automatically on overload to clear jams.

Star-delta startAuto reverseOverload safe
Control04
Product 03 · Grinding

High-EfficiencyHAMMER MILL

Built for performance. Made to last.

A high-efficiency crushing machine that grinds agricultural and forestry waste into fine, uniform material ready for pelletizing. It runs smoothly with low heat build-up and gives long service life, even under heavy-duty biomass processing.

Capacity*2 – 7 TPH
Motor power75 – 200 kW
Models5 sizes
OutputPellet-ready powder

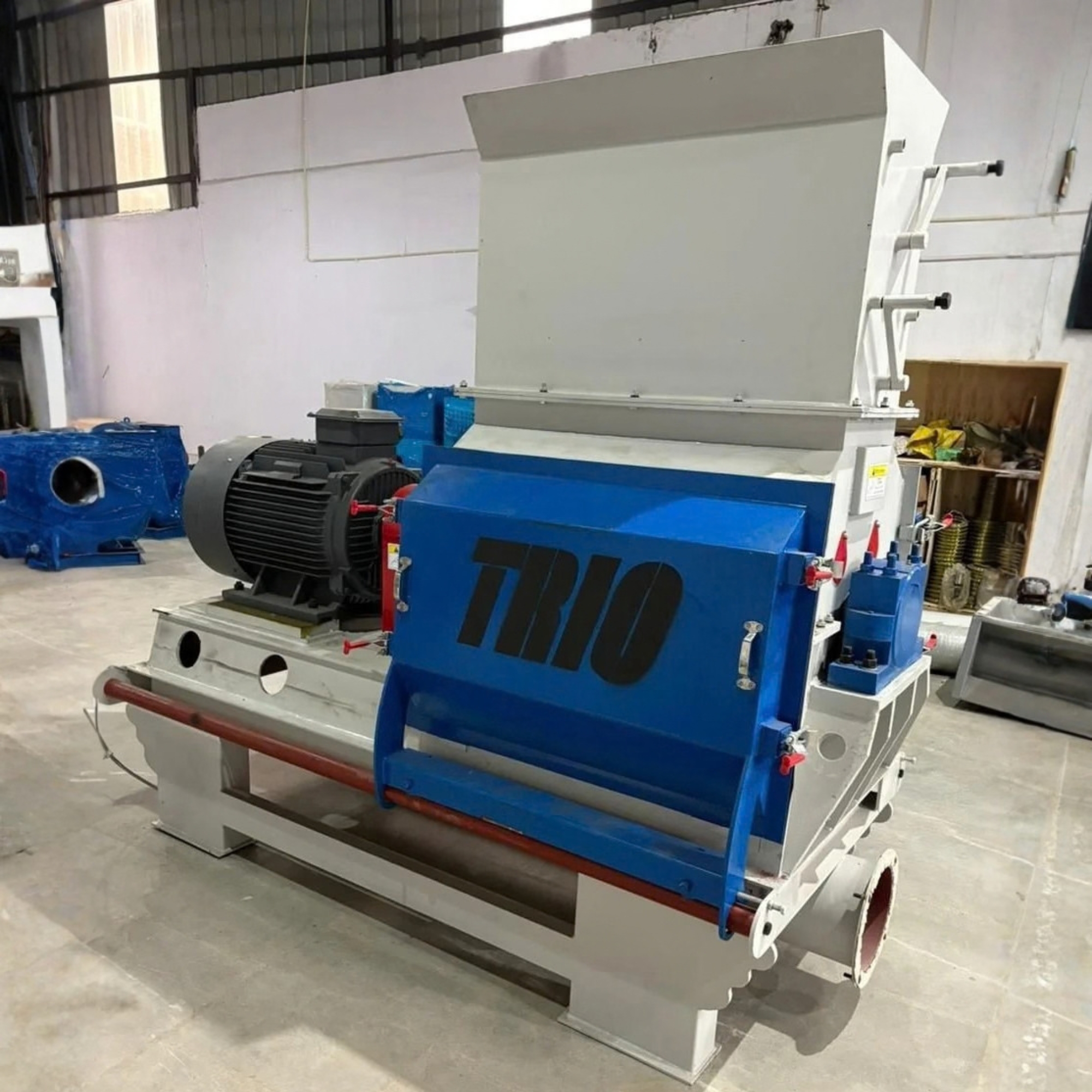

TRIO hammer mill machine
⚡Up to 7 TPH ⚙75–200 kW ≋Fine, Uniform Output ❦Agro + Forestry ❄Low Heat Build-up
TECHNICAL PARAMETERS

Pick the Size for Your Line

5 models · 75 to 200 kW
ModelPowerCapacity (TPH)*
TRIO 65×10075 kW
2 – 3*
Enquire
TRIO 65×10090 kW
2.5 – 3.5*
Enquire
TRIO 80×130132 kW
4 – 5*
Enquire
TRIO 80×130160 kW
5 – 6*
Enquire
TRIO 100×160200 kW
6 – 7*
Enquire

* Machine output depends on material type, moisture content and material density. Figures are indicative only.

Swipe to see more
FEATURE_1
Fine, Uniform Grinding

Swinging hammers and a sizing screen turn shredded residue into even powder that presses into consistent pellets.

Uniform sizePellet-readySizing screen
Grinding01
FEATURE_2
Low Heat Build-up

Designed to run cool under load, so the material keeps its quality and the machine keeps running.

Cool runningSmooth operation
Temperature02
FEATURE_3
Heavy-Duty Build

A rigid frame, quick-open doors and a direct-coupled motor give long service life in tough biomass work.

Long lifeQuick access75–200 kW
Build03
FEATURE_4
Agro & Forestry Waste

Grinds straw, husk, stalks, sawdust and wood chips after shredding, ready for the pellet mill.

Paddy strawMustard huskSawdustWood chips
Raw material04
02
Category 02

Feeding & Bale Handling

Bring round bales in from the field and keep the line fed steadily, without manual loading.

2 machines
Product 04 · Feeding

Trio AutoFEEDING UNIT

Steady feed. No manual loading.

A robust 24–30 ft long container with a rotating belt system, built to handle raw material efficiently. It gives a consistent, uninterrupted supply to the machines that follow, removes stones and other large unwanted particles before they can damage them, and lets you adjust the output speed to match the pace of your line.

Length24 – 30 ft
FeedingRotating belt
Output speedAdjustable
Stone removalBuilt-in

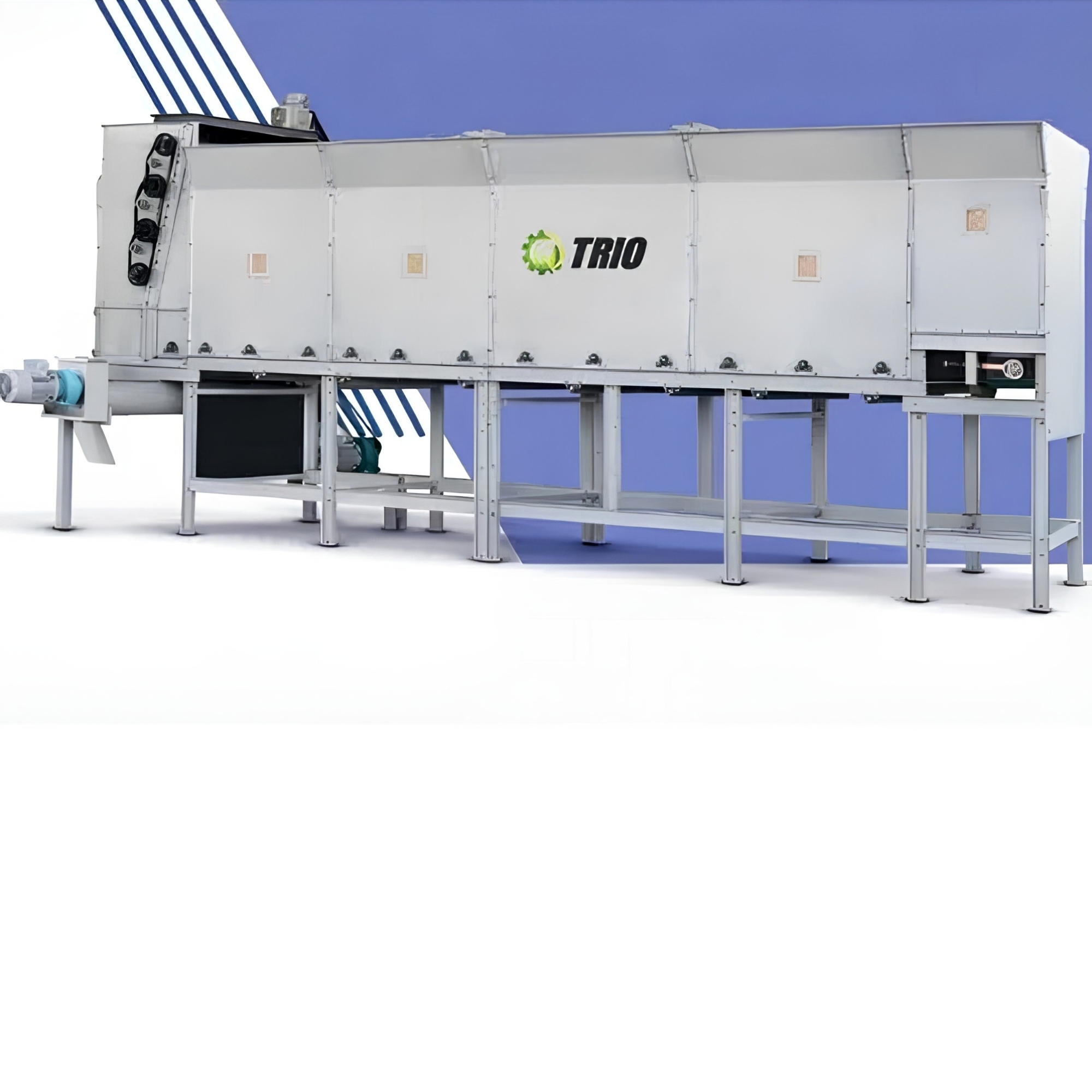

TRIO Auto Feeding Unit
↔24–30 ft Long ⟳Rotating Belt ⚡Adjustable Speed ◆Stone Separator
Swipe to see more
FEATURE_1
Rotating Belt Feed

A 24–30 ft container with a rotating belt moves raw material forward in a steady, even stream.

24–30 ftRotating beltEven flow
Feeding01
FEATURE_2
Stone Separation

A built-in separation mechanism removes stones and large unwanted particles that could damage the machines downstream.

Removes stonesProtects machines
Protection02
FEATURE_3
Adjustable Speed

Set the output speed to match the operating pace of the shredder, hammer mill or pellet mill it feeds.

Variable speedMatches your line
Control03
FEATURE_4
No Manual Feeding

Replaces manual loading, saves time and raises the overall production efficiency of the plant.

Less labourSaves timeHigher output
Efficiency04
Product 05 · Bale handling

AutomaticROUND BALE TROLLEY

Lift. Load. Move.

Lift, load and move round bales easily with strength, safety and stability. A fully automatic hydraulic loading and unloading system carries up to 15 bales in a single trip, saving time, labour and operating cost from the field to your plant.

CapacityUp to 15 bales
Size (L × W)22 × 8 ft
Bale diameter4 – 6 ft
HydraulicsFully automatic
TRIO Automatic Round Bale Trolley in a field
◉Up to 15 Bales ⇅Auto Load & Unload ⌀4–6 ft Bales ⚙Hydraulic System
TECHNICAL SPECIFICATIONS

Built to carry More in One Trip

Automatic Round Bale Trolley
DescriptionSpecification
Length22 ft
Width8 ft
CapacityUp to 15 bales
Bale diameter4 – 6 ft
Tyre size10.00×16 / 12 PR
Hydraulic systemFully automatic
UsageAgriculture, paddy, wheat, maize, grass, bhusa, etc.
Swipe to see more
FEATURE_1
High Load Capacity

Carries up to 15 round bales of 4–6 ft diameter, so a single trip moves far more straw.

Up to 15 bales4–6 ft balesFewer trips
Capacity01
FEATURE_2
Automatic Loading

A fully automatic loading and unloading system lifts bales on and off the trolley with no manual effort.

Auto loadAuto unloadNo manual lifting
Handling02
FEATURE_3
Strong & Safe Build

A strong hydraulic system and durable structure with a safe, stable and shock-resistant design.

HydraulicShock resistantStable
Build03
FEATURE_4
Many Crops

Handles bales of paddy, wheat, maize, grass, bhusa and other agricultural residue.

PaddyWheatMaizeGrassBhusa
Usage04
03
Category 03

Supporting Plant Equipment

Sawdust maker, Z-elevator and conveyor belt: the equipment that links every stage of your pellet line.

3 machines
Product 06 · Other equipment

SupportingPLANT EQUIPMENT

The machines that connect your line: making sawdust from wood waste and moving material from one stage to the next.

Swipe to see more

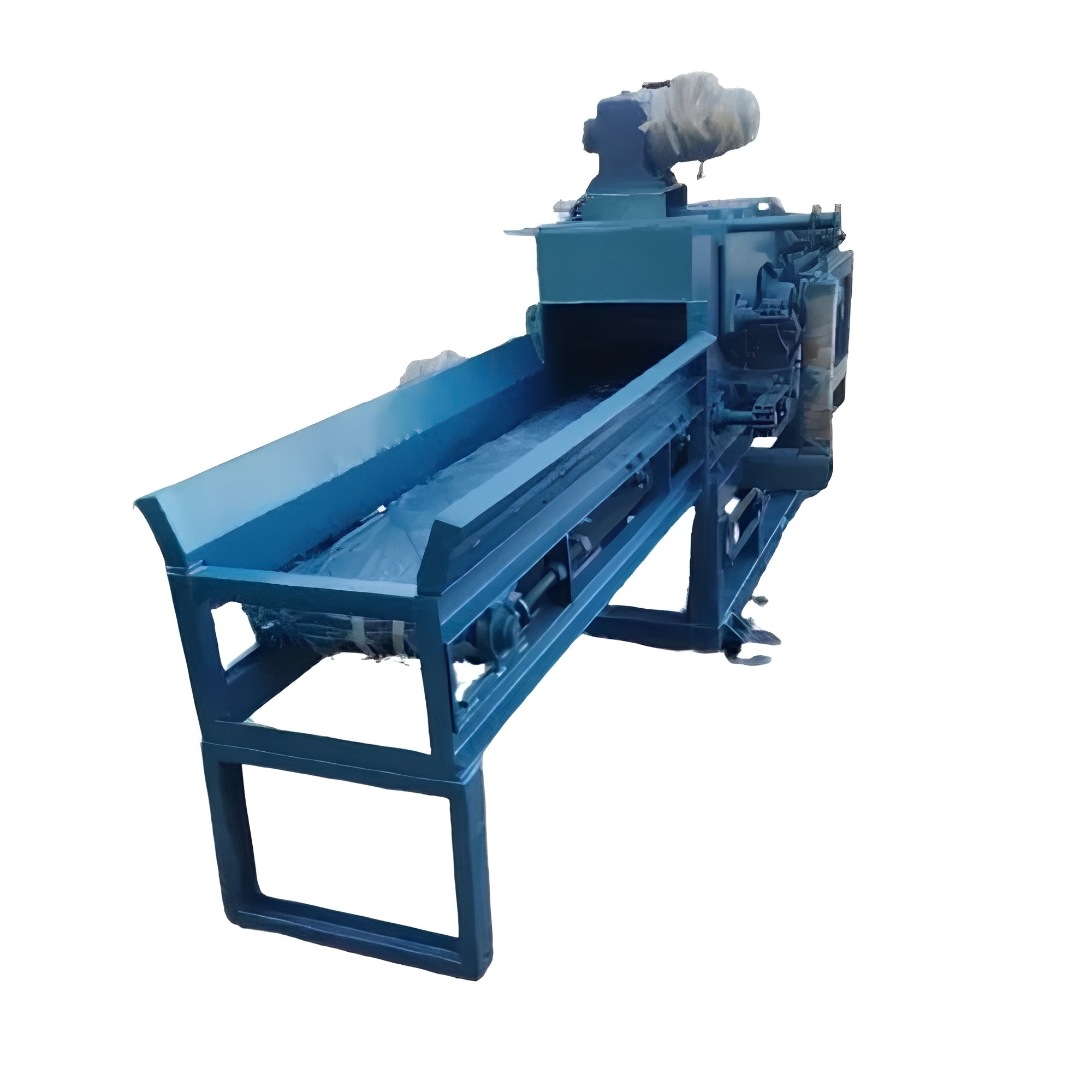

TRIO Sawdust Making Machine
Size reduction

Sawdust Making Machine

Turns wood waste such as offcuts, branches and chips into fine sawdust, ready for the hammer mill or pellet mill.

Wood wasteFine sawdust
Explore Machine

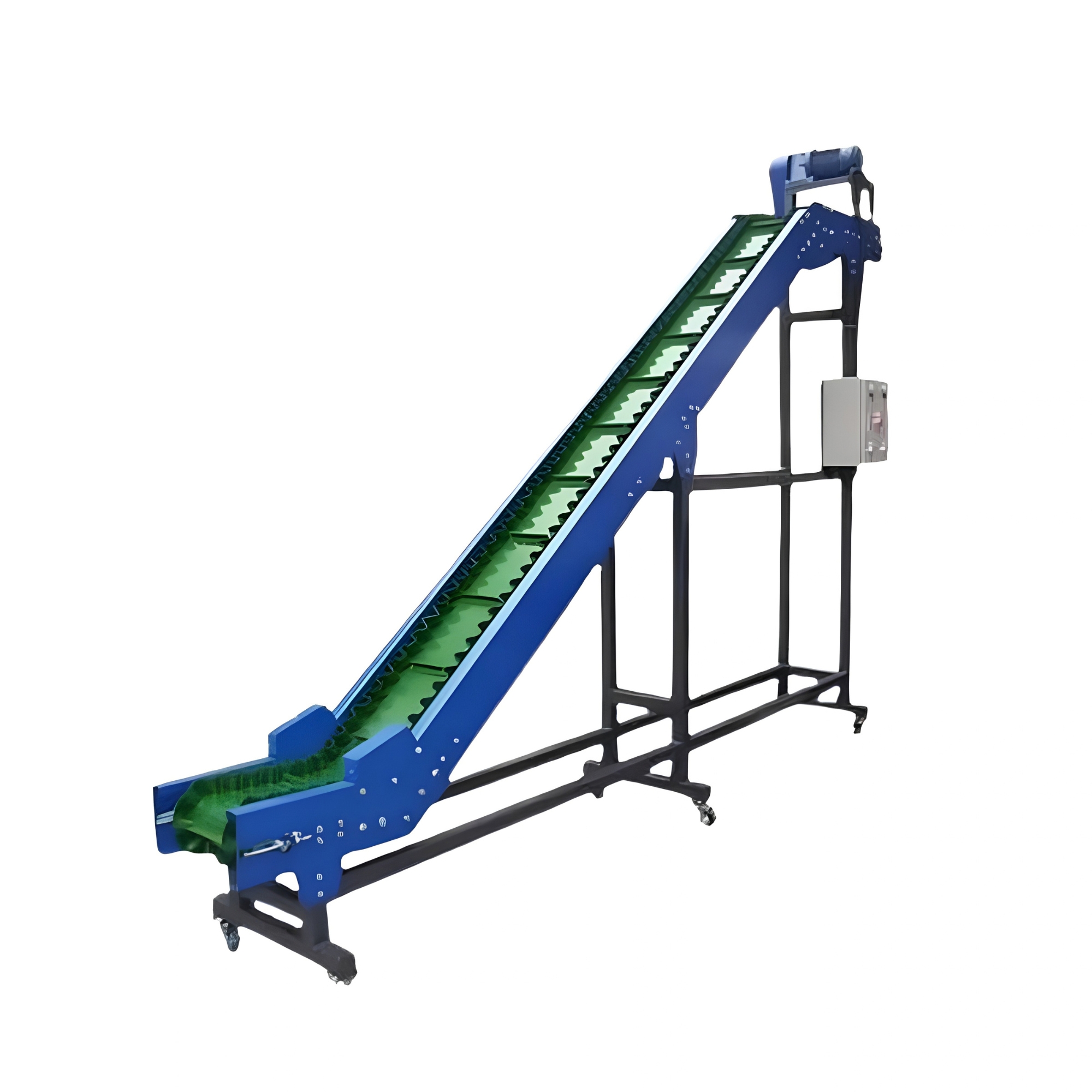

TRIO Z-Elevator
Material handling

Z-Elevator

Lifts material up to the next machine on a cleated belt, so it climbs steeply without slipping back. Saves floor space.

Cleated beltSteep liftCompact
Explore Machine

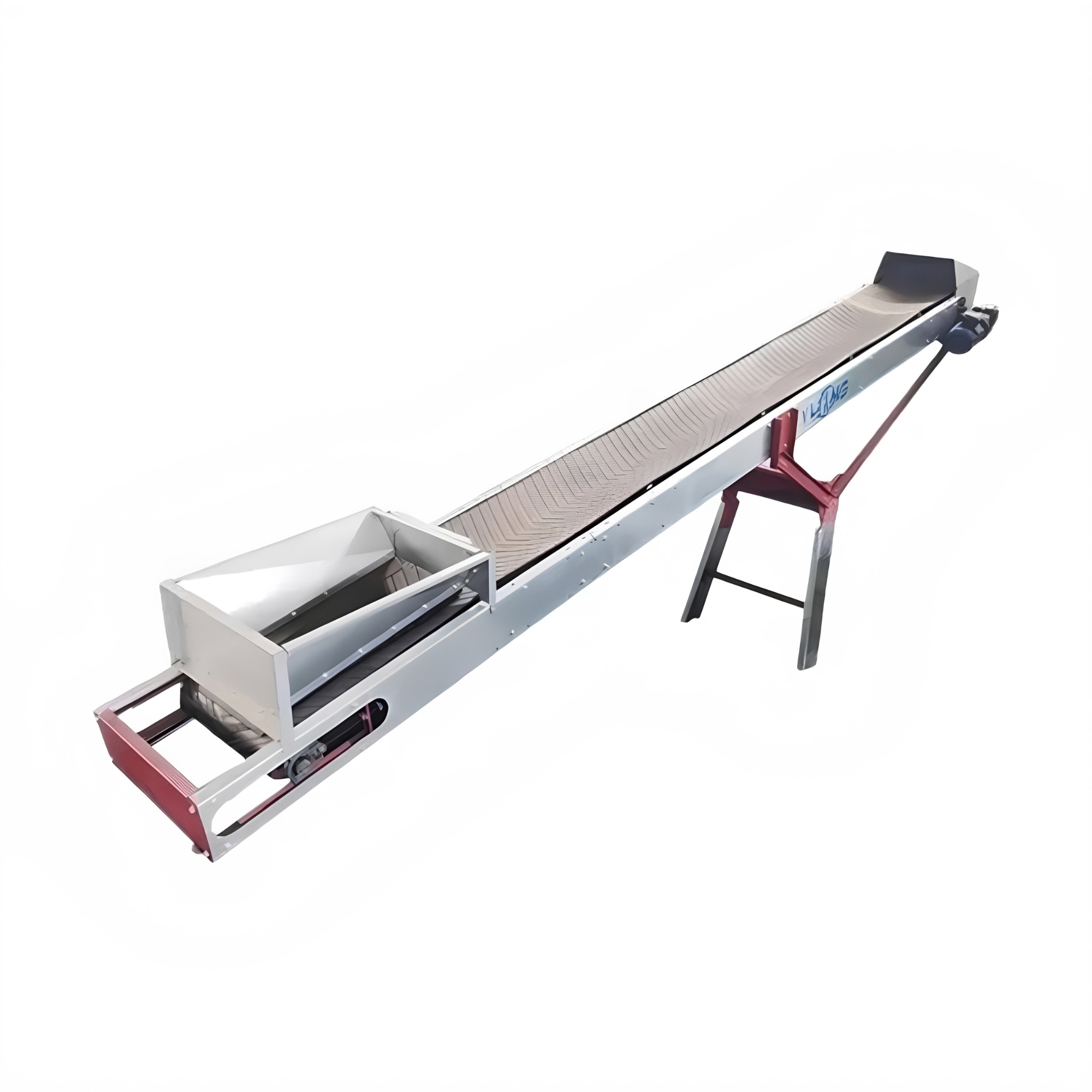

TRIO Conveyor Belt
Material handling

Conveyor Belt

Moves raw material and pellets between machines along the floor, with a feed hopper at the inlet. Sized to your plant layout.

Belt conveyorFeed hopperCustom length
Explore Machine
04
Category 04

Genuine Spare Parts

Wear parts for TRIO ring die pellet machines and hammer mills, checked before dispatch to keep your plant running.

27 parts
Product 07 · Genuine spare parts

Pellet MachineSPARE PARTS

Right part. Right fit. Less downtime.

Ring dies, roller shells, roller assemblies, bearings and every wear part your ring die pellet machine needs. Made to fit TRIO machines, checked before dispatch and shipped across India from Jaipur.

Parts in catalogue27 items
Fits560 model ring die
Ring die materialSS & alloy steel
DispatchPan India
TRIO pellet machine spare parts: ring die, roller shell, roller assembly, bearing and shaft
◎Ring Dies ⚙Roller Assemblies ◉Bearings & Seals ✓Checked Before Dispatch

Most Ordered Parts

For 560 model vertical ring die pellet machine
Swipe to see more

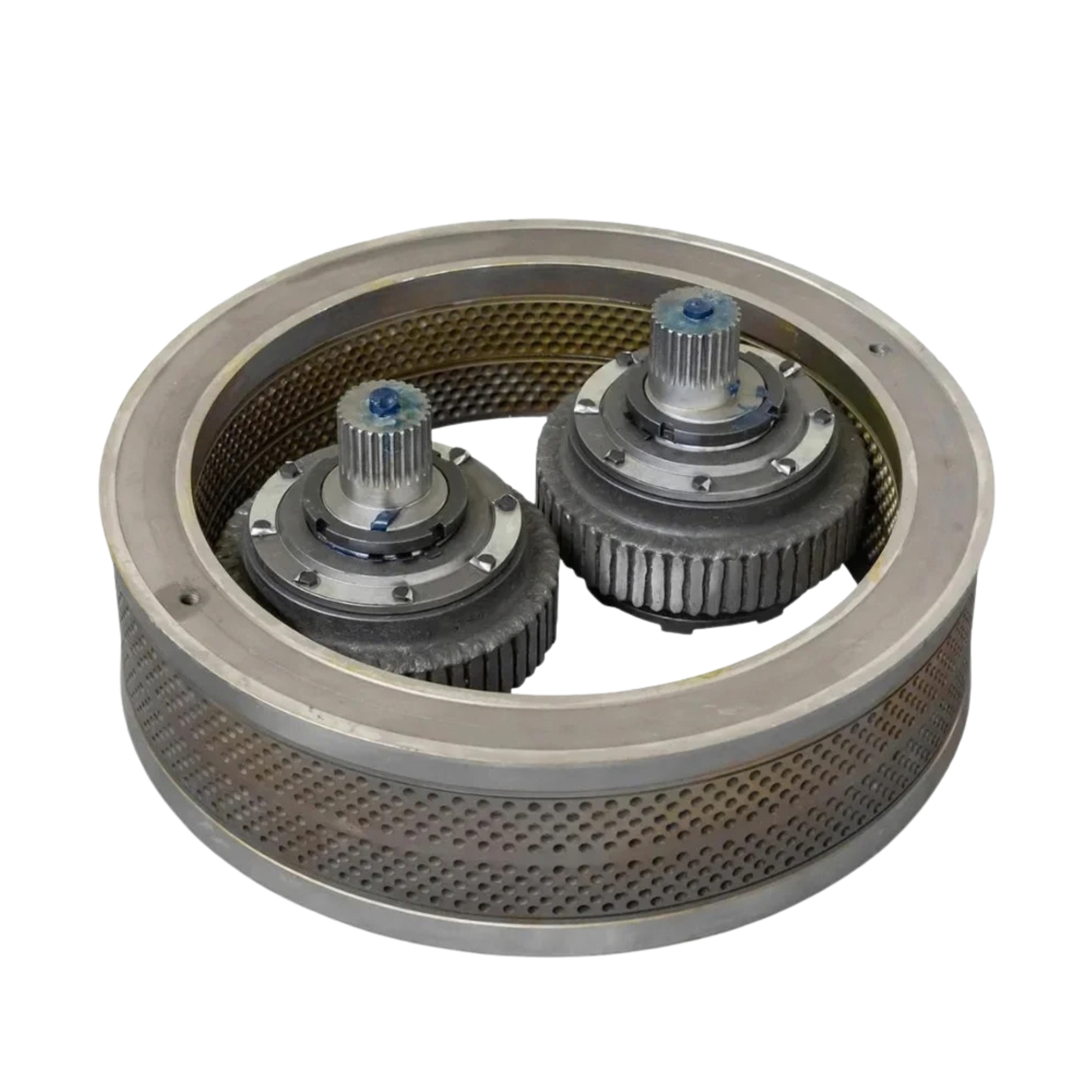

TMSP-01TRIO Pellet Ring Die TMSP-01 for 560 model ring die pellet machine
Ring die
Pellet Ring Die

Stainless steel · SS x46Cr13

TMSP-02TRIO Pellet Ring Die TMSP-02 for 560 model ring die pellet machine
Ring die
Pellet Ring Die

Alloy steel · 20CrMnTi

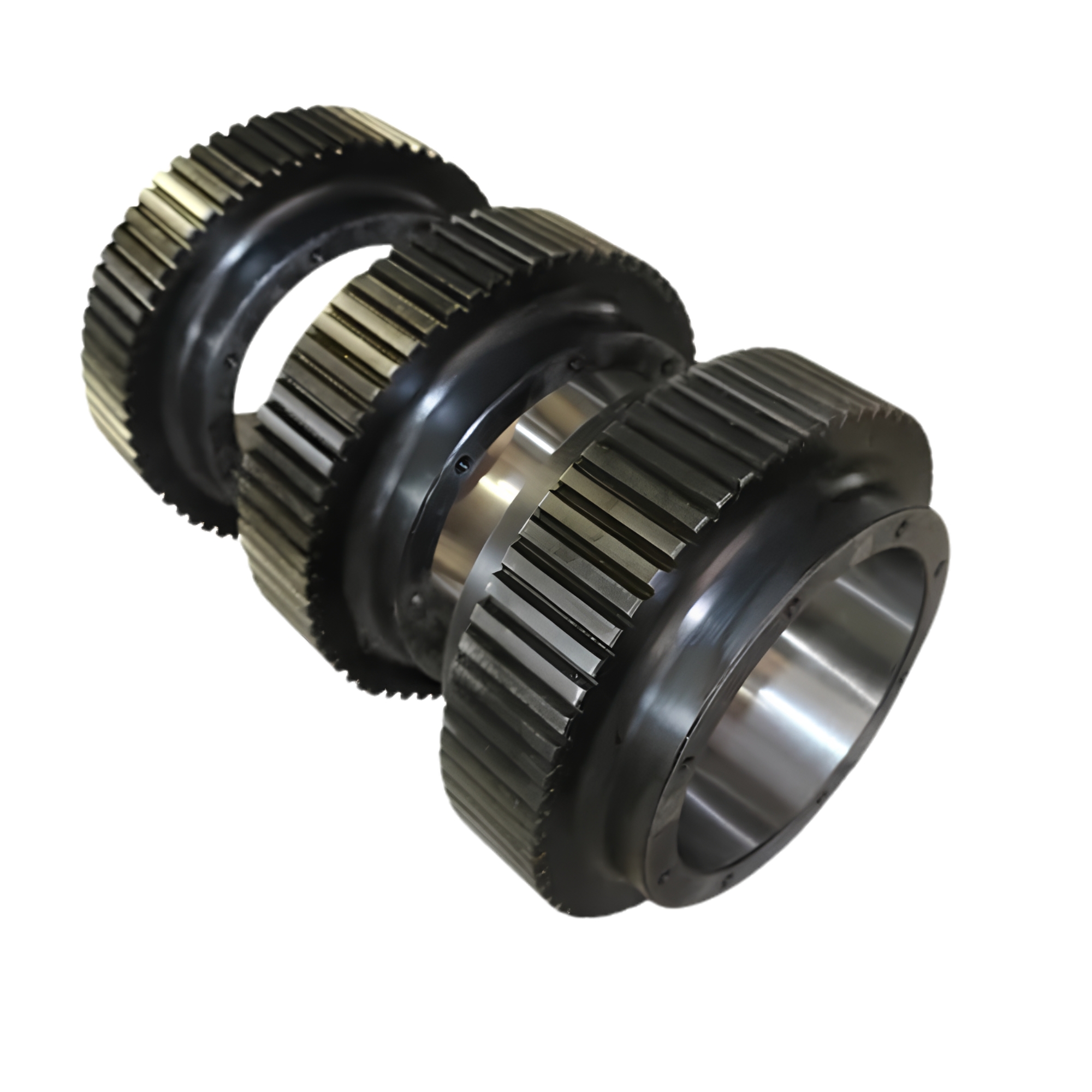

TMSP-04TRIO Roller Shell (Welded Type) TMSP-04 for 560 model ring die pellet machine
Roller shell
Roller Shell (Welded Type)

High grade weld

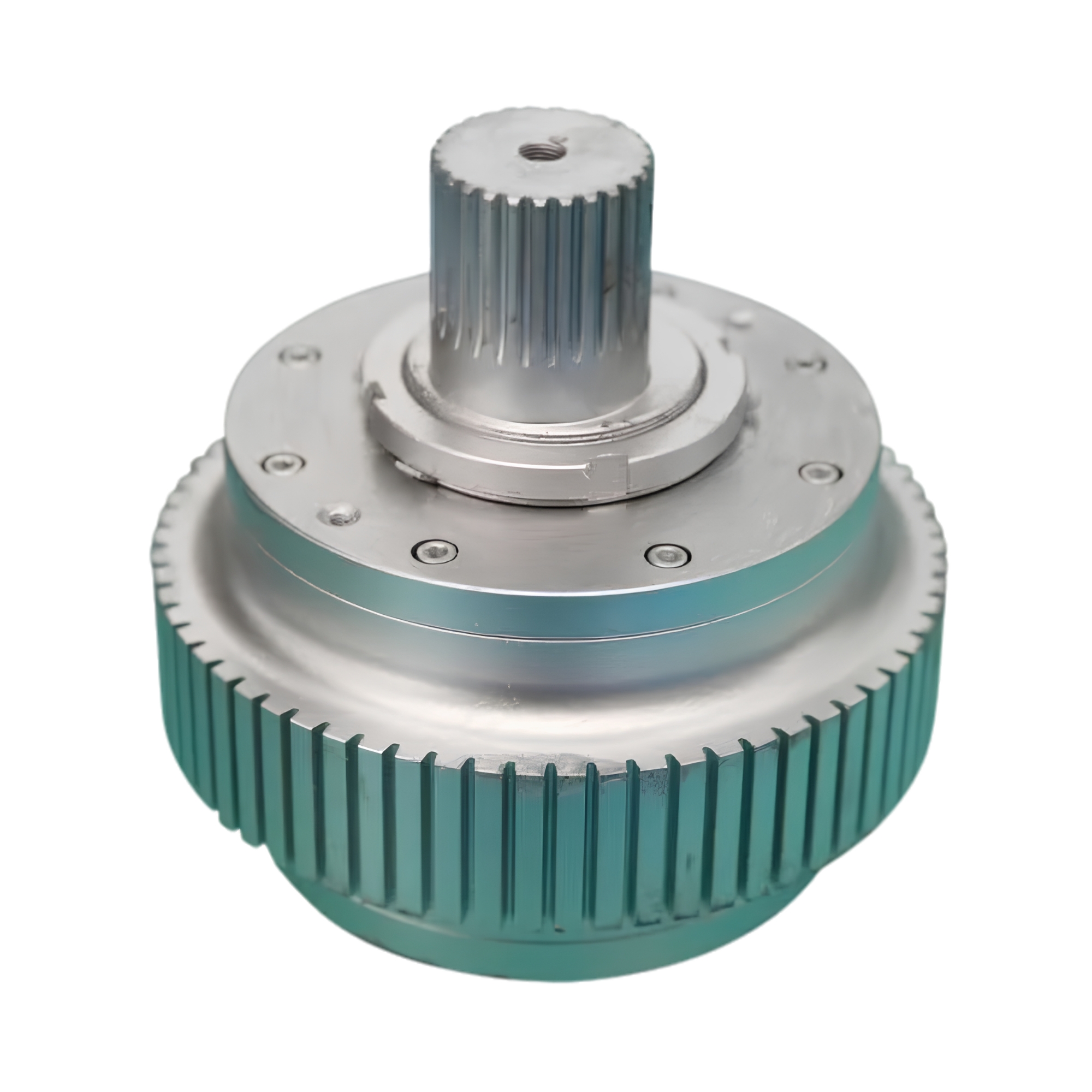

TMSP-05TRIO Roller Assembly (Welded Type) TMSP-05 for 560 model ring die pellet machine
Roller assembly
Roller Assembly (Welded Type)

High grade weld

TMSP-06TRIO Roller Assembly (Teeth Head Type) TMSP-06 for 560 model ring die pellet machine
Roller assembly
Roller Assembly (Teeth Head Type)

20CrMnTi

TMSP-07 / 08TRIO Roller Bearing 33120 TMSP-07 / 08 for 560 model ring die pellet machine
Bearing
Roller Bearing 33120

High quality & genuine top grade

TMSP-10TRIO Roller Shell Shaft TMSP-10 for 560 model ring die pellet machine
Shaft
Roller Shell Shaft

Machined steel shaft

TMSP-20TRIO Hammer Mill Crusher Blade TMSP-20 for 560 model ring die pellet machine
Hammer mill
Hammer Mill Crusher Blade

High grade, long durability

Full range:Ring DiesRoller ShellsRoller AssembliesBearings & Oil SealsShafts & Flange PlatesSpacers, Nuts & KeysRoller Adjusters & LocksGrease Pipes & Oil FiltersHammer Mill Blades

Prices are ex-works Jaipur and exclude GST and transport. Send your machine model, and we will confirm the right part before dispatch.

Full product brochureSpecs, capacities and plant layouts in one PDF.
Download brochure
How it works

From Field Residue to Bagged Pellets

Configuration guide
Swipe to see more
Step 01: Collect, Agro baler · round bale trolley01

Collect

Straw is baled in the field instead of burnt.
Step 02: Shred, TRIO Shredder02

Shred

The shredder cuts the bales into small chips.
Step 03: Grind, Hammer Mill03

Grind

The hammer mill turns the chips into fine powder.
Step 04: Pelletize, Ring Die Pellet Machine04

Pelletize

The ring die presses the powder into pellets.
Step 05: Pack, Cooling & packing05

Pack

Pellets are cooled, screened and bagged.
Pellet Plant Configuration Guide

Tell Us Your Raw Material. See Your Plant Configuration.

Three quick choices. Get your machine line and expected output instantly.

1Choose raw material
2Moisture level
0%Ideal 10–15%30%+
3Target output
Your plant configuration

    TRIO ring die pellet machine
    Heart of your plant
    Per day20 running hrs
    Per month26 working days
    50 kg bags/dayapprox.
    Indicative configuration for guidance only. Final machine sizing is confirmed by TRIO engineers.
    Our Installed Plants

    Running Today across India

    TRIO pellet plants running in 4 states, supported from Jaipur.

    50+Plants installed
    5States
    JaipurHead office
    Jaipur HQ
    Bright dots: plant statesJaipur HQMap is illustrative
    Customer Stories · Installed Plants

    Trusted by 50+ Plant Owners

    Real TRIO plants running across India. Tap a video to watch it on Instagram.

    Plants running inMorenaMadhya PradeshBathindaPunjabNarnaulHaryanaAmritsarPunjabBadalPunjabBilaspurChhattisgarh
    Watch More on Instagram
    ★★★★★
    “Excellent quality biomass machines and great after-sales support.”
    Amit Verma · Verified Client
    Awards & Certificates

    Recognised by Industry, Registered with Government

    Honoured at India's leading bioenergy expos, and fully registered as a manufacturing company. Tap any image to see it in full.

    Awards & Recognition

    Swipe to see more

    Registrations & Certificates

    Swipe to see more
    Exhibitions & Events

    Our Machines, Live on the Expo Floor

    We bring the full TRIO line to India's leading bioenergy expos, so you can see the build quality up close and talk directly to our engineers. Tap any photo to see it in full.

    TRIO Renewable exhibition booth, Stall S-41, with pellet mill and shredder on display
    Stall S-41

    The TRIO Renewable Pavilion

    Our complete pelletising line on display, with a dedicated consultation lounge.

    TRIO Renewable team standing at the exhibition stall
    Our People

    The Team Behind TRIO

    Engineers, sales and service experts, all under one roof.

    TRIO ring die pellet mill and spare ring dies on display
    Live Demo

    Ring Die Pellet Mill

    Hardened ring dies and rollers, displayed alongside the machine.

    TRIO cyclone dust collector and spare parts display at the exhibition
    Auxiliaries

    Dust Collector & Spares

    Cyclones, bag filters and genuine spare parts.

    Missed us at the expo? See the machines anyway.

    Book a live demo or a factory visit and our engineers will walk you through the right line for your raw material.

    Live machine demos One-to-one engineer consults Dies & spares on display
    Blog

    Latest from Our Blog

    View All Articles
    Swipe to see more
    FAQ

    Questions We hear Every Day

    Still have a question?Mail us your query, or talk to a TRIO engineer directly on WhatsApp.
    Head Office8, Pandit TN Mishra Marg, Nirman Nagar, Jaipur 302019 · +91 85059 02337
    WarehouseA-117, Manu Path, Shyam Nagar, Jaipur, Rajasthan 302019 · +91 92515 94751
    Get in touch

    Request a Quote

    We reply within one working day · sales@triorenewableeng.com
    Thanks! WhatsApp has opened with your details. Just press send.
